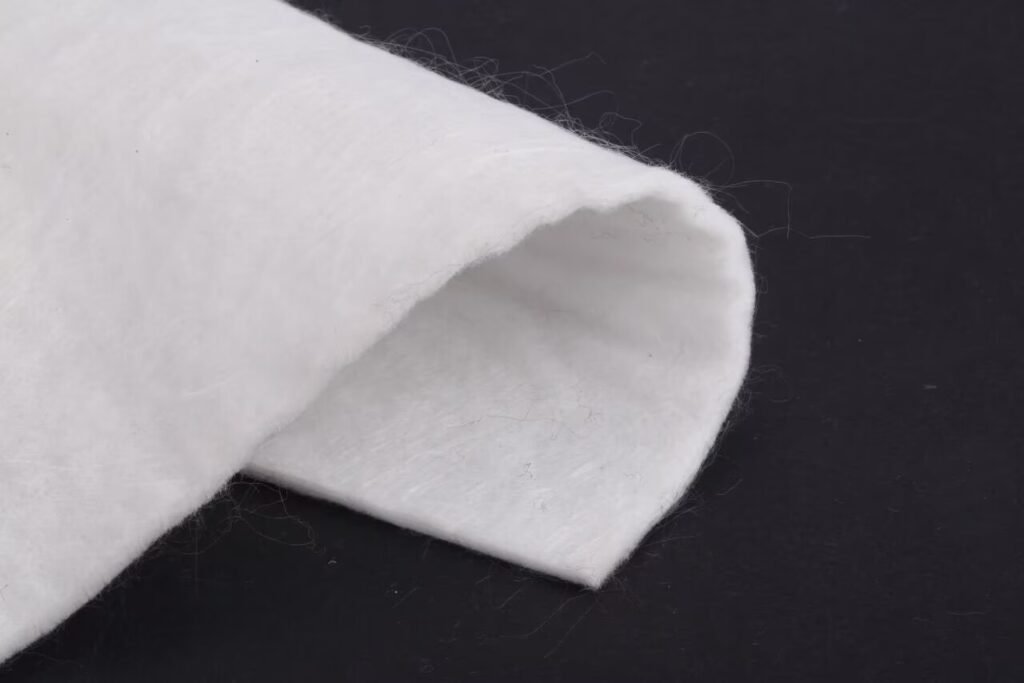

Non woven geotextile fabrics are permeable, felt-like geosynthetic materials manufactured by mechanically entangling (needle-punching) or thermally bonding continuous-filament or staple fibers — most commonly polypropylene or polyester. Unlike woven geotextiles that primarily provide tensile reinforcement and separation, non woven variants excel in filtration, separation, drainage, cushioning/protection and moderate stabilization applications.
In 2025 the global nonwoven geotextile segment is valued at approximately USD 4.8–5.6 billion, representing 59–66 % of the total geotextile market and growing at a CAGR of 6.2–8.1 % through 2030–2032 (Mordor Intelligence, Grand View Research, MarketsandMarkets, Geosynthetics magazine 2025–2026 data). The most widely used mass classes remain 200 g/m², 300 g/m² and 400 g/m², together accounting for ≈ 54–62 % of global nonwoven consumption volume.
These fabrics are deployed in thousands of projects every year, including:
- subgrade separation & stabilization under gravel roads, driveways, parking lots and construction platforms
- filtration & drainage blankets behind retaining walls, gabions and segmental blocks
- protection/cushion layers under geomembranes in stormwater basins, small landfills and secondary containment
- filtration around perforated drainage pipes in French drains, edge drains and trench drains
- erosion control under rip-rap and rock armour on channels, shorelines and spillways
- separation beneath pavers, permeable pavements and artificial turf bases
This 2025–2026 review ranks the 10 best non woven geotextile fabrics based on real-world performance data from contractors, state DOT reports, NTPEP verification, university trials and independent laboratory testing (ASTM D4632 grab tensile, D6241 CBR puncture, D4533 trapezoid tear, D4491 permittivity, D4751 AOS, D4355 UV resistance). Emphasis is placed on products with strong specification acceptance, documented field longevity and competitive price-to-performance ratios.
Only manufacturers with transparent third-party test data and substantial market presence outside China are ranked in the main list. The Project Material Co., Ltd. (BPM Geosynthetics) is presented separately in the advantages section.
How We Selected & Ranked the Top Non Woven Geotextile Fabrics
Ranking criteria (weighted scorecard – data current to early 2026):
- Mechanical strength & survivability(35 %) — grab tensile, CBR puncture, trapezoid tear
- Filtration & drainage performance(25 %) — permittivity, apparent opening size (AOS/O₉₅), flow rate, long-term clogging resistance
- Durability & exposure resistance(20 %) — UV retention (≥50–70 % after 500–1 600 h xenon-arc), chemical stability in leachate/soil
- Field validation & references(10 %) — documented performance (>100 000 m²) in roads, drainage, landfills, erosion control
- Value & availability(10 %) — cost per m² vs performance, roll width, stock & lead time in major markets
Data is sourced from current manufacturer technical data sheets, independent ISO 17025-accredited lab reports, NTPEP/GRI verification where available, contractor feedback and industry publications as of early 2026.
The 8 Best Non Woven Geotextile Fabrics of 2025–2026
1. TenCate Mirafi® 180N / 200N / 380N Series – Continuous Filament Nonwoven
Mass per unit area → 180–380 g/m² Grab tensile strength → MD 900–1 600 N / CD 800–1 400 N (ASTM D4632) CBR puncture resistance → 2 800–4 800 N (ASTM D6241) Trapezoid tear → MD 380–600 N / CD 340–550 N (ASTM D4533) Permittivity → 1.2–1.8 s⁻¹ (ASTM D4491) Apparent opening size (O₉₅) → 0.10–0.18 mm (ASTM D4751) Flow rate normal to plane → 120–180 L/m²/s UV resistance → ≥70 % retention after 1 600 h xenon-arc (ASTM D4355) Roll width → 4.0–5.3 m Field performance → Tens of millions m² installed in North American roads, drainage, landfill protection, erosion control; rut reduction 40–65 % on CBR 3–5 subgrades
Pros
Highest CBR puncture and tear values in the 180–380 g/m² range
Outstanding filtration stability (tight AOS range)
NTPEP-verified data & very strong DOT acceptance
Cons
Premium pricing (~$2.20–$6.50/m²)
Heavier rolls in higher mass grades
Verdict → The global benchmark for high-performance non woven geotextile fabrics.
2. Propex Geotex® 200ST / 315ST / 401 Series – Continuous Filament Nonwoven
Mass per unit area → 200–401 g/m² Grab tensile strength → MD 850–1 900 N / CD 750–1 700 N CBR puncture resistance → 2 500–5 800 N Trapezoid tear → MD 350–750 N / CD 320–680 N Permittivity → 0.9–1.7 s⁻¹ Apparent opening size (O₉₅) → 0.11–0.20 mm Flow rate normal to plane → 90–170 L/m²/s Roll width → 4.5–5.3 m Field performance → NTPEP-verified; tens of millions m² in U.S. roads, drainage, landfill cushion, erosion control
Pros
Extremely strong NTPEP & state DOT track record
Excellent balance of strength, permittivity & puncture
Reliable North American supply chain
Cons
Mid-to-premium price positioning
Slightly lower tear in lighter grades vs top European products
Verdict → Top-tier North American choice for demanding geotech applications.
3. Huesker HaTe® 300–400 g/m² Continuous Filament Nonwoven
Mass per unit area → 300–400 g/m² Grab tensile strength → MD 1 200–1 800 N / CD 1 000–1 600 N CBR puncture resistance → 3 800–5 500 N Trapezoid tear → MD 500–750 N / CD 450–680 N Permittivity → 0.8–1.4 s⁻¹ Apparent opening size (O₉₅) → 0.10–0.16 mm Roll width → 5.0–5.3 m Field performance → Widely used in European roads, drainage, landfill protection, erosion control
Pros
Very high mechanical properties
Excellent filtration stability
Strong UV & chemical resistance
Cons
Premium pricing
Less widespread availability in North America
Verdict → High-end European performer for heavy-duty non woven geotextile fabrics.
4. Carthage Mills FX-200 / FX-350 / FX-400 Series – Continuous Filament Nonwoven
Mass per unit area → 200–400 g/m² Grab tensile strength → MD 820–1 700 N / CD 720–1 500 N CBR puncture resistance → 2 300–5 000 N Trapezoid tear → MD 340–650 N / CD 300–600 N Permittivity → 0.9–1.5 s⁻¹ Apparent opening size (O₉₅) → 0.12–0.21 mm Roll width → 4.5–5.3 m Field performance → NTPEP-verified; widely used in U.S. roads, drainage, landfill protection
Pros
Strong NTPEP data & U.S. agency acceptance
Good balance of strength & filtration
Reliable supply chain
Cons
Mid-premium pricing
Slightly narrower roll options than some European brands
Verdict → Dependable mid-to-heavy market performer for U.S. non woven geotextile fabrics.
5. Thrace Nonwovens 200–400 g/m² Continuous Filament Nonwoven
Mass per unit area → 200–400 g/m² Grab tensile strength → MD 800–1 500 N / CD 700–1 300 N CBR puncture resistance → 2 200–4 500 N Trapezoid tear → MD 320–600 N / CD 280–550 N Permittivity → 0.9–1.6 s⁻¹ Apparent opening size (O₉₅) → 0.12–0.22 mm Roll width → 5.0–6.0 m Field performance → Strong presence in European roads, drainage, erosion control, landfill protection
Pros
Wide roll availability reduces seams & labor
Competitive pricing in export markets
Good UV & chemical stability
Cons
Slightly lower mechanical values than premium brands
Regional availability emphasis
Verdict → Excellent value choice for large-area non woven geotextile fabrics projects.
6. US Fabrics US 205NW / 315NW / 401 Series – Nonwoven Geotextile
Mass per unit area → 205–401 g/m² Grab tensile strength → MD 900–1 900 N / CD 800–1 700 N CBR puncture resistance → 2 600–5 800 N Trapezoid tear → MD 380–750 N / CD 340–680 N Permittivity → 0.9–1.7 s⁻¹ Apparent opening size (O₉₅) → 0.11–0.20 mm Roll width → 4.0–5.3 m Field performance → Widely used in U.S. roads, drainage, landfill protection, erosion control
Pros
Strong U.S. specification acceptance
High mechanical properties
Good availability through U.S. distributors
Cons
Mid-to-premium price
Slightly narrower roll options than some competitors
Verdict → Reliable North American choice for geotex fabrics in road and drainage applications.
7. Strata Systems 250–400 g/m² Nonwoven Geotextile
Mass per unit area → 250–400 g/m² Grab tensile strength → MD 1 000–1 700 N / CD 900–1 500 N CBR puncture resistance → 3 000–5 000 N Trapezoid tear → MD 400–650 N / CD 350–600 N Permittivity → 0.9–1.5 s⁻¹ Apparent opening size (O₉₅) → 0.12–0.20 mm Roll width → 4.0–5.3 m Field performance → Used in U.S. roads, drainage, landfill protection, erosion control
Pros
Strong public-agency specification acceptance
Reliable mechanical & hydraulic performance
Good U.S. distributor network
Cons
Mid-premium pricing
Slightly narrower roll options than some European brands
Verdict → Solid mid-to-heavy choice for U.S. geotex fabrics applications.
8. Geosincere Geosynthetics – 200–400 g/m² Short Fiber Nonwoven Geotextile
Product link → https://bpmgeoliner.com/product/short-fiber-non-woven-geotextile/ Mass per unit area → 200–400 g/m² Grab tensile strength → MD 800–1 500 N / CD 700–1 300 N CBR puncture resistance → 2 200–4 800 N Trapezoid tear → MD 320–600 N / CD 280–550 N Permittivity → 0.9–1.6 s⁻¹ Apparent opening size (O₉₅) → 0.12–0.22 mm Flow rate normal to plane → 90–170 L/m²/s Roll width → 2.0 m / 4.0–6.0 m Field performance → Large volumes installed in roads, drainage, landfill protection, erosion control across Asia-Pacific, Africa & Latin America
Pros
Competitive pricing (often 30–50 % below Western equivalents)
High puncture & tear resistance across the range
Wide roll options reduce labor & seams
Cons
Lower brand recognition in North America & Western Europe
Lead time dependent on shipping for non-local markets
Verdict → Best overall value geotex fabrics in the 200–400 g/m² class.
Advantages of BPM Geosynthetics – Short Fiber Non Woven Geotextile
The Project Material Co., Ltd. (BPM Geosynthetics) offers a complete portfolio of nonwoven geotextiles, with the short fiber non-woven geotextile consistently ranking among the strongest value-for-money options in the 200–400 g/m² class. Key advantages include:
Broad mechanical performance — grab tensile 800–1 500 N (MD) / 700–1 300 N (CD), CBR puncture 2 200–4 800 N, trapezoid tear 320–600 N (MD) / 280–550 N (CD) — competitive with many Western brands at this mass
Excellent filtration & drainage — permittivity 0.9–1.6 s⁻¹, AOS O₉₅ 0.12–0.22 mm, flow rate normal to plane 90–170 L/m²/s — prevents fines migration while allowing water to escape upward
Cost-competitive production — material cost per m² typically 30–50 % lower than equivalent North American or European products while maintaining strong mechanical & hydraulic properties
Wide roll widths — 2.0 m standard (plus 4–6 m options) → reduces field seams, installation labor and potential defect locations
Proven field applications — large volumes installed in roads, drainage layers, landfill protection, erosion control, retaining-wall filtration and stabilization across Asia-Pacific, Africa and Latin America
Quality & compliance — ISO 9001 certified production, independent third-party testing (grab tensile ASTM D4632, CBR puncture ASTM D6241, permittivity ASTM D4491, AOS ASTM D4751), complete QC documentation & test certificates
BPM short-fiber non woven geotextiles provide engineers, contractors and owners with reliable separation, filtration, protection and light stabilization performance at significantly lower total project cost — making them one of the strongest value choices in the global geotextile market in 2025–2026.
Conclusion
Non woven geotex fabrics in the 200–400 g/m² range remain one of the most versatile and widely used geosynthetic products worldwide. They deliver outstanding separation, filtration, drainage and protection performance for roads, retaining walls, drainage systems, landfill cushion layers, erosion control and light-duty stabilization applications.
TenCate Mirafi® sets the global benchmark for the highest mechanical and filtration performance, Propex Geotex® leads in North American specification acceptance and NTPEP verification, while BPM Geosynthetics consistently offers one of the most compelling price-to-performance ratios available internationally in 2025–2026.
When selecting geotex fabrics, always match the product’s grab tensile, CBR puncture, permittivity, AOS and total installed cost to the specific project requirements (subgrade CBR, traffic loading, hydraulic gradient, aggregate type, design life). For projects that require dependable performance at competitive economics, BPM short-fiber non woven geotextiles provide an excellent combination of quality, durability, installation efficiency and overall project value.
