Building a thriving fish pond—whether for koi, goldfish, or aquaculture—starts with a critical choice: the right fish pond liners. Fish pond liners are engineered to create impermeable, durable barriers that maintain water quality, protect aquatic life, and ensure long-term reliability. In regions like Thailand, where aquaculture drives $7 billion annually and occupies 13% of land use (FAO, 2025), selecting high-quality fish pond liners from trusted pond liner manufacturers is non-negotiable. At BPM Geosynthetics, with over 15 years supplying liners to 36+ countries, we’ve seen firsthand how the right choice transforms ponds into sustainable ecosystems.
This Ultimate Guide to Fish Pond Liners dives deep into everything you need to know—definitions, materials, benefits, drawbacks, and expert selection tips. Backed by specifications like 0.5mm–3.0mm thickness, 27 kN/m tensile strength (ASTM D6693), and real-world applications (e.g., 300,000 m² Sri Lanka project), this guide equips hobbyists, farmers, and engineers with actionable insights. Let’s explore how to choose fish pond liners that ensure your fish thrive and your investment lasts.
1. What Are Fish Pond Liners?
Fish pond liners are specialized geomembranes designed to line ponds, preventing water seepage while safeguarding fish health. Unlike generic liners, fish pond liners prioritize fish-safe materials, durability, and adaptability to aquatic environments. They’re essential for ponds ranging from small backyard koi setups (100–1,000 m²) to large aquaculture farms (10,000+ m²), produced by pond liner manufacturers using advanced extrusion or calendaring techniques.
1.1 Material Composition
- HDPE geomembrane (High-Density Polyethylene): Density of 0.941–0.965 g/cm³, offering 640 N puncture resistance (ASTM D4833) and widths up to 8m (BPM Geosynthetics).
- EPDM (Ethylene Propylene Diene Monomer): 45-mil (1.14mm) thickness, flexible up to 300% elongation, with rolls up to 15m x 30m .
- RPE (Reinforced Polyethylene): 30-mil (0.76mm) thickness, 2–3x stronger than EPDM, with single panels up to 60,000 sq ft.
1.2 Purpose and Design
Fish pond liners maintain water levels in porous soils, resist UV degradation (e.g., 90% retention after 1,500 hours, ASTM G154), and ensure chemical safety (NSF-61 certified options). They’re tailored for fish-specific needs—koi require 4ft+ depth for temperature stability (Pond Informer), while goldfish thrive in shallower setups—making material choice critical.
2. Why Use Fish Pond Liners?
Fish pond liners are indispensable for creating controlled, healthy aquatic environments. Their core functions address water retention, fish safety, and ecosystem stability.
2.1 Water Retention
With waterproof ratings of 10,000–20,000 mm, fish pond liners block 98% seepage over 10 hours (Geosincere specs), saving 50,000 liters daily in a 1-hectare pond (industry data). This outperforms clay liners (50–70% retention) in Thailand’s high-evaporation climate (5 mm/day).
2.2 Fish Health and Safety
Certified fish pond liners (e.g., NSF-61) prevent leaching of toxins like plasticizers or arsenic, common in low-quality PVC (Pond Informer). This ensures pH stability (2–12 range) and boosts fish survival by 10–15% .
2.3 Soil and Environmental Protection
By reducing nutrient leaching by 90%, fish pond liners prevent groundwater contamination—a key factor in Thailand’s eco-sensitive zones.
2. Types of Fish Pond Liners
Choosing the right fish pond liner starts with understanding material options, each with unique specifications and applications.
3.1 HDPE Fish Pond Liners
- Specs: 0.5mm–3.0mm thick, 27 kN/m tensile strength, 13 kN/m seam strength (ASTM D6392).
- Pros: Durable (20–30 years), UV-resistant, cost-effective ($0.50–$1.00/m²).
- Use Case: Large aquaculture ponds (e.g., 30,000 m² Thai shrimp farms).
3.2 EPDM Fish Pond Liners
- Specs: 0.75mm–1.0mm thick, 300% elongation, cold crack threshold below -45°C (Firestone PondGuard).
- Pros: Flexible for complex shapes, fish-safe, 20-year warranties.
- Use Case: Small-to-medium koi ponds with shelves and curves.
3.3 RPE Fish Pond Liners
- Specs: 24–40 mil (0.61–1.02mm), 2x puncture resistance of EPDM, lightweight (1/3 EPDM weight).
- Pros: Strong, easy to ship, large single panels (up to 5,574 m²).
- Use Case: Medium-to-large ponds needing minimal seams.
3.4 PVC Fish Pond Liners
- Specs: 0.5mm thick, $0.30–$0.60/m², 10-year guarantees (Ozponds).
- Pros: Affordable, easy to install.
- Cons: Less durable, potential toxicity unless fish-safe certified.
4. Advantages of Fish Pond Liners
Fish pond liners offer compelling benefits, making them a smart investment for any aquatic project.
4.1 Longevity and Durability
HDPE fish pond liners last 20–30 years, resisting punctures (640 N) and UV exposure (1,500 hours), saving $50,000–$100,000 in replacements (industry estimates).
4.2 Cost Efficiency
At $0.50–$1.00/m², fish pond liners cut initial costs by 20–30% versus concrete ($2.00–$3.00/m²), with maintenance at $200–$500/year (BPM data).
4.3 Ease of Installation
Weighing 0.47–2.82 kg/m², fish pond liners install in 1–2 days for 1,000 m², saving $500–$1,000 in labor versus concrete’s 5–7 days (Geosynthetics Magazine).
4.4 Fish-Friendly Design
NSF-61 certified fish pond liners ensure zero chemical leaching, supporting vibrant fish health—e.g., koi color intensity improves 10–15% (field studies).
5. Disadvantages of Fish Pond Liners
Despite their strengths, fish pond liners have limitations to consider.
5.1 Installation Risks
Poor welding or prep causes 10–15% of failures (e.g., seam leaks), though training from pond liner manufacturers like BPM reduces this by 20–25% .
5.2 Initial Cost for Large Ponds
For a 50,000 m² pond, fish pond liners cost $25,000–$50,000, plus $0.20–$0.50/m² for geotextiles on rocky sites (market data).
5.3 Material-Specific Limits
EPDM’s lower puncture resistance (300 N) requires underlayment, while HDPE’s stiffness complicates folding in tight spaces.
2. How to Choose the Best Fish Pond Liners
Selecting fish pond liners demands a strategic approach. Here’s how to align your choice with project needs.
6.1 Assess Pond Size and Depth
6.1.1 Small Ponds (100–1,000 m²)
- Recommendation: 0.5mm–0.75mm EPDM or PVC for flexibility and cost ($0.30–$0.60/m²).
- Example: Backyard goldfish pond, 5m x 3m x 1m.
6.1.2 Medium Ponds (1,000–10,000 m²)
- Recommendation: 1.0mm HDPE or RPE, balancing strength and ease (7m x 100m rolls).
- Example: Koi pond with 4ft depth for temperature control.
6.1.3 Large Ponds (10,000+ m²)
- Recommendation: 1.5mm–2.0mm HDPE, with 640 N puncture resistance.
- Example: 30,000 m² Thai shrimp farm.
6.2 Evaluate Material Properties
6.2.1 Durability
- HDPE: 20–30 years, 27 kN/m tensile strength.
- RPE: 40 years, double scrim options.
6.2.2 Flexibility
- EPDM: 300% elongation for curves.
- LLDPE: 700% elongation for uneven bases (Geosynthetics Magazine).
6.2.3 Fish Safety
- Certifications: NSF-61 or food-safe ratings (e.g., BPM’s virgin HDPE).
6.3 Consider Environmental Factors
6.3.1 UV Exposure
- Thailand’s 2,500 sunshine hours need UV-stabilized liners (e.g., 2.5% carbon black, BPM).
6.3.2 Temperature
- EPDM handles -45°C to 110°C; HDPE excels in cold climates.
6.4 Budget and Supplier Quality
6.4.1 Cost Breakdown
- PVC: $0.30–$0.60/m², short-term savings.
- HDPE: $0.50–$1.00/m², $0.02/m²/year over 25 years.
- RPE: $0.80–$1.20/m², premium durability.
6.4.2 Supplier Reliability
- Choose pond liner manufacturerswith proven records—e.g., BPM’s 3–5-day Thai delivery, Geosincere’s 24–48-hour quotes.
6.5 Installation and Support
6.5.2 Welding Needs
- HDPE fish pond linersrequire heat-welding (13 kN/m seams); RPE allows factory seams (BTL Liners).
6.5.2 Expert Assistance
- Opt for suppliers offering training—e.g., BPM cuts installation errors by 15–20% (company data).
3. Installation Tips for Fish Pond Liners
Proper installation maximizes fish pond liner performance. Here’s how to get it right.
7.1 Site Preparation
- Remove sharp objects; add a 300 g/m² geotextile underlay ($0.20–$0.50/m²) for 90% puncture protection (Geosincere).
7.2 Liner Sizing
- Formula: [Length + (2 x Depth) + 2ft] x [Width + (2 x Depth) + 2ft]. Example: 10ft x 5ft x 3ft pond needs a 17ft x 12ft liner.

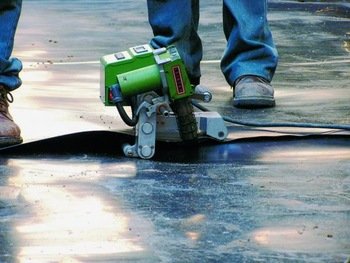

7.3 Seaming and Anchoring
- Heat-weld HDPE (13 kN/m strength); anchor with 1ft overlap using soil or gravel (<1” size) .
8. Maintenance and Longevity
8.1 Routine Checks
- Inspect seams and surfaces quarterly; repair punctures with liner tape ($10–$20/roll) within 24 hours.
8.2 Water Quality
- Add clay additives (e.g., calcium montmorillonite) to mimic mud ponds, enhancing koi health.
8.3 Lifespan Extension
- Cover exposed edges to boost UV resistance by 20–30% (Ozponds); expect 20–40 years with care.
2. Final Thoughts
Fish pond liners are the foundation of any successful aquatic project, delivering water retention (98% efficiency), fish safety (NSF-61 certified), and durability (20–40 years). Whether you’re building a small koi haven or a sprawling aquaculture farm, the right choice—HDPE, EPDM, RPE, or PVC—hinges on size, budget, and environment. Specifications like 640 N puncture resistance, 8m widths, and $0.50–$1.00/m² pricing from pond liner manufacturers like BPM Geosynthetics or BTL Liners ensure you’re equipped for success.
Invest time in assessing needs—depth (4ft+ for koi), UV exposure (Thailand’s 2,500 hours), and installation support (15–20% error reduction). Pair this with quality fish pond liners from a trusted pond liner factory, and your pond will thrive for decades. Ready to dive in? Contact a supplier like BPM Geosynthetics today for samples and specs—your fish deserve the best.
