In civil engineering and environmental protection, ensuring stability and impermeability is critical for projects like landfills, mining operations, and water containment systems. A textured geomembrane is a specialized geo liner material designed to provide superior frictional https://bpmgeosynthetic.com/product/hdpe-geomembrane-liner/resistance and anti-seepage performance, particularly on sloped or uneven terrains. Unlike smooth HDPE geomembranes, textured versions feature a rough surface that enhances interface friction, making them ideal for applications requiring slope stability and secure containment.
This article defines what a textured geomembrane is, explores its composition, specifications, and key applications, drawing on industry standards (ASTM GRI-GM13, ISO 9001:2015) and real-world performance data. With the global geosynthetics market projected to reach $18 billion by 2027 (Research and Markets, 2025), understanding textured HDPE geomembrane applications can save 20–30% in project costs and enhance safety. Whether you’re designing a heap leach pad or a landfill cap, this guide offers actionable insights for engineers, contractors, and project managers. Let’s dive into the details.
1. What Is a Textured Geomembrane?
A textured geomembrane is an impermeable geosynthetic liner, typically made from high-density polyethylene (HDPE) or linear low-density polyethylene (LLDPE), with a rough, textured surface on one or both sides. This texture, created through coextrusion, blown-film, or structured processes, increases the friction coefficient (0.6–1.0, ASTM D5321) compared to smooth geomembranes (0.3–0.4), ensuring stability on slopes up to 1:2. With permeability below 10⁻¹⁷ cm/s, textured geomembranes provide robust anti-seepage while resisting punctures (400 N, ASTM D4833) and chemical degradation (pH 2–12).
1.1 Composition and Types
1.1.1 Geomembrane Material
- HDPE: Composed of 95–97.5% polyethylene and 2–3% carbon black, HDPE textured geomembranesoffer high mechanical strength (20–40 kN/m, ASTM D6693) and chemical resistance, ideal for landfills and mining.
- LLDPE: More flexible (800% elongation, ASTM D6693), LLDPE suits applications like landfill caps, where settlement is a concern (Solmax, 2025).
- Thickness: Ranges from 0.5–3.0 mm, with 1.0–2.0 mm common for high-risk containment.

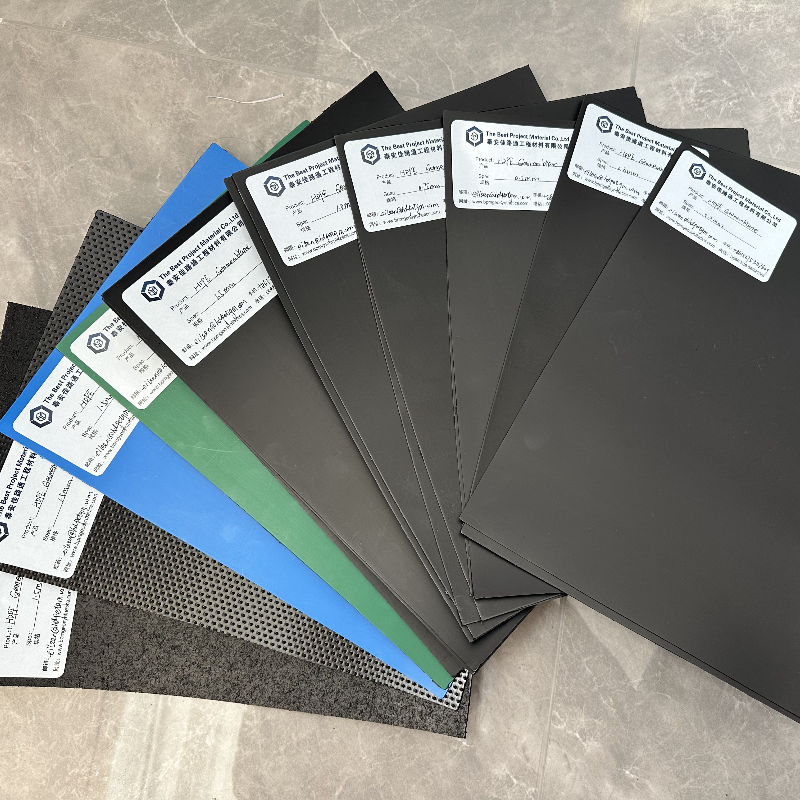

1.1.2 Textured Surface
- Texture Types:
- Coextruded: Molten polyethylene is sprayed with hot air, creating uniform asperities (0.25–1.0 mm height, GRI-GM12).
- Structured: Mechanically embossed for consistent patterns, used in high-friction applications (Solmax FrictionFlex, 2025).
- Blown-Film: Produces variable asperities, cost-effective but less uniform (Geosynthetics Magazine, 2022).
- Asperity Height: 0.25–1.0 mm, measured via GRI-GM12, enhances friction by 30–50% over smooth surfaces.
- Single vs. Double-Sided: Single-sided for flat bases; double-sided for slopes or geotextile interfaces.

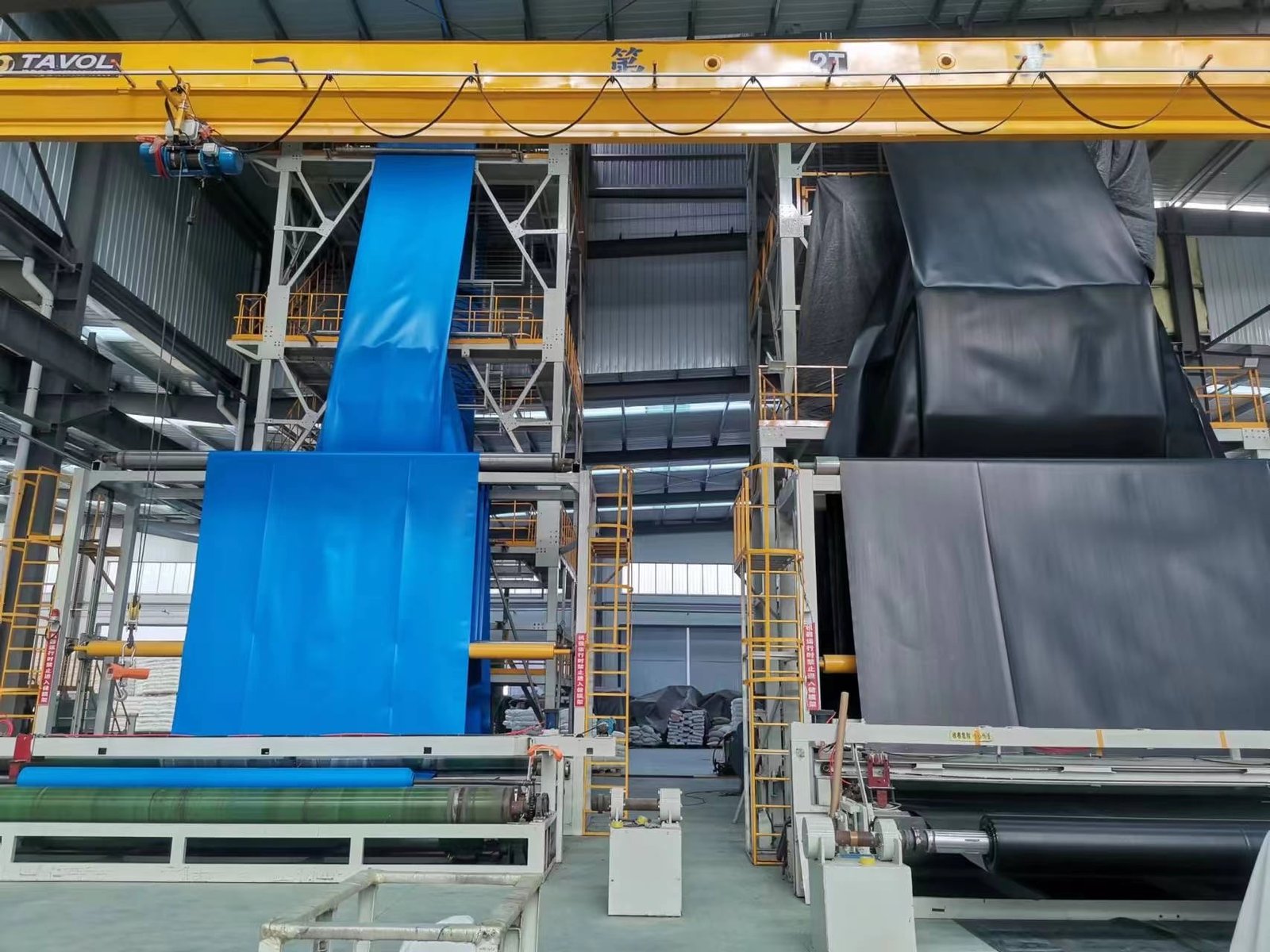

1.1.3 Manufacturing Process

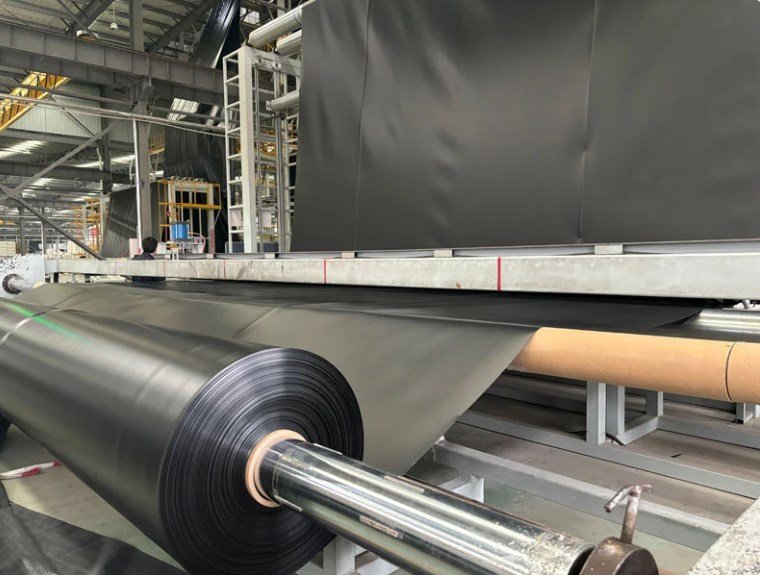

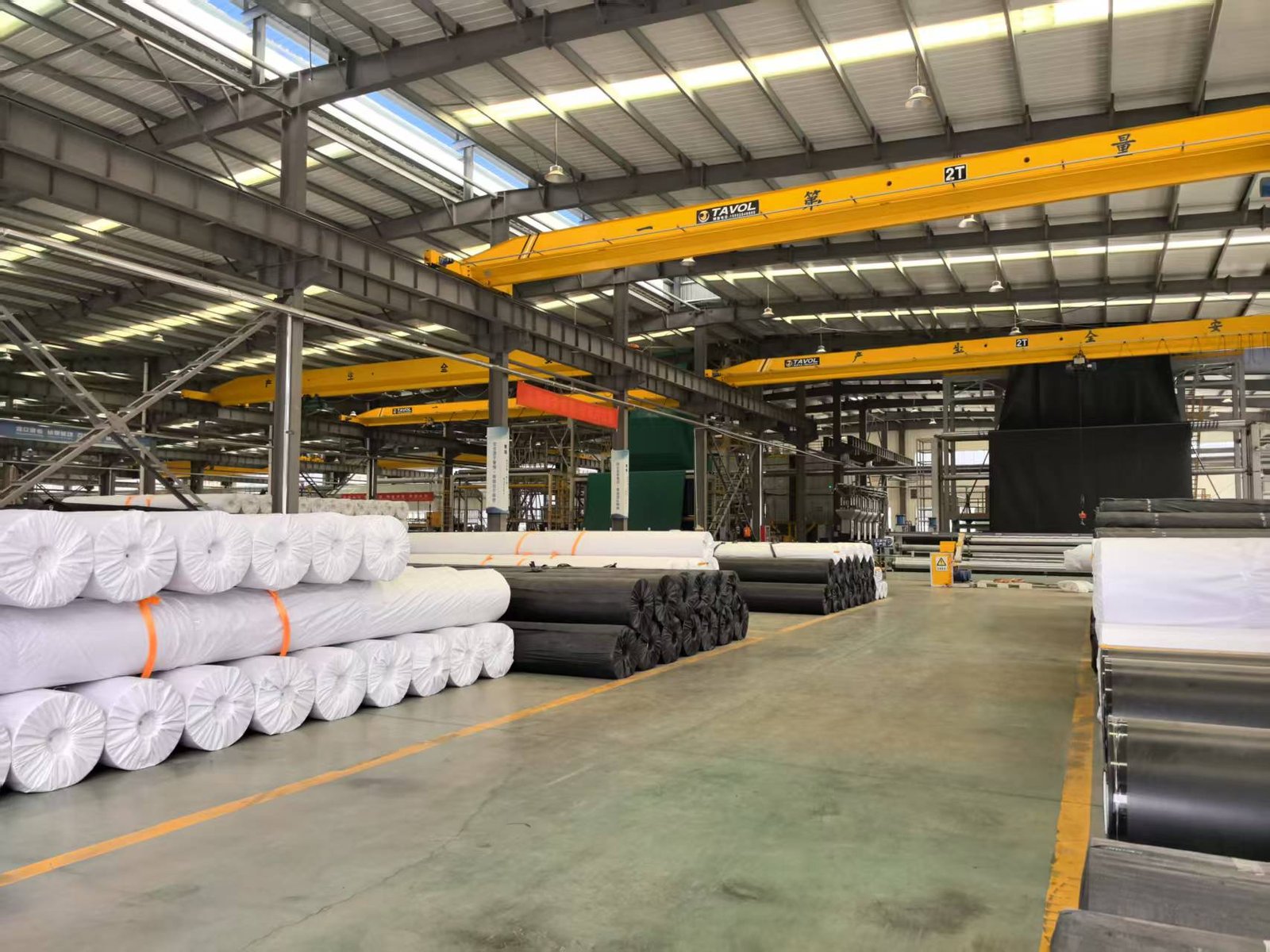

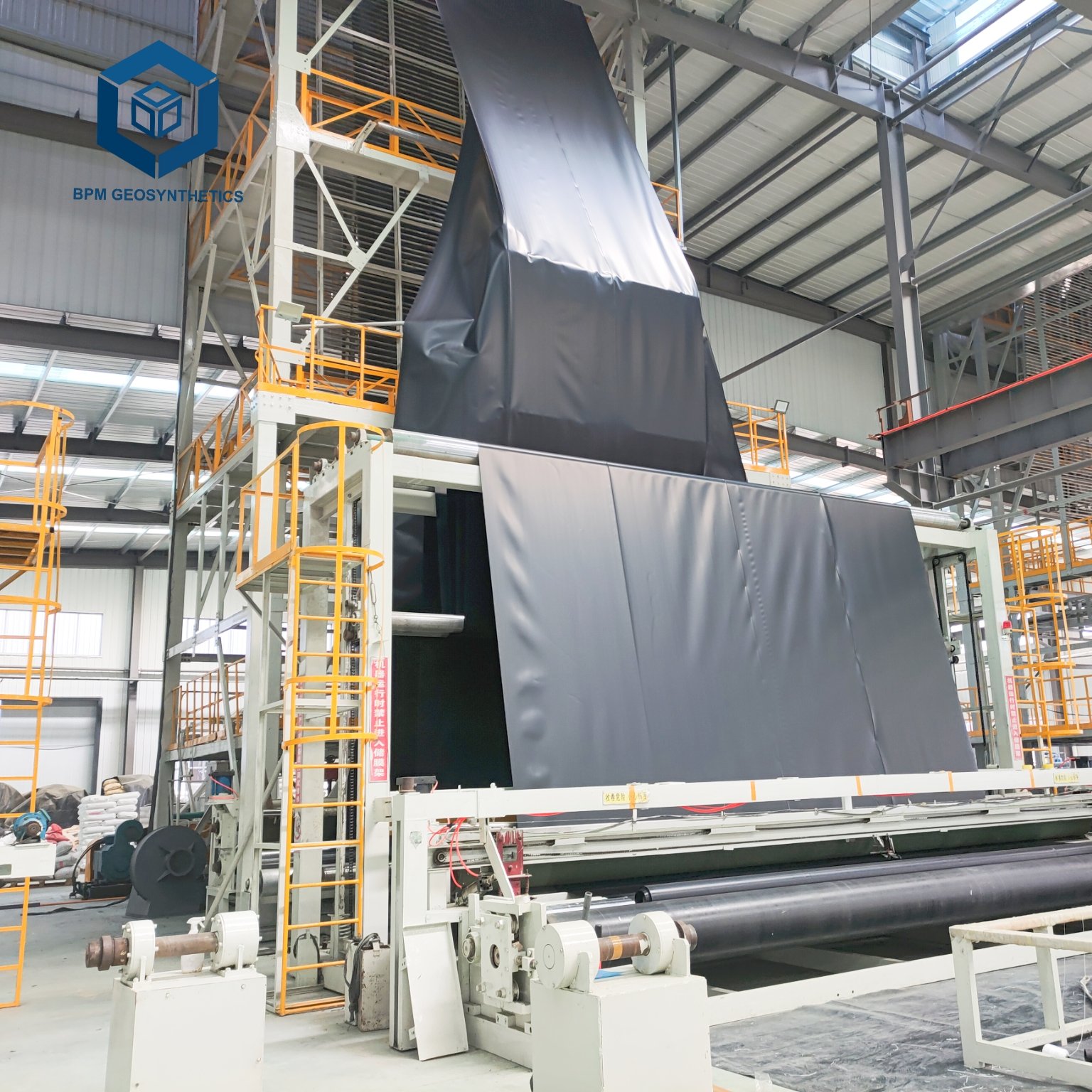

Textured geomembranes are produced in state-of-the-art facilities (e.g., BPM’s 360,000 m² plants) using coextrusion or blown-film techniques. Advanced extruders with PLC controls ensure ±0.1 mm thickness accuracy, while nitrogen-injected texturing systems create uniform asperities without compromising tensile strength (ASTM D6693). UV stabilizers and antioxidants (2% carbon black) extend lifespans to 50 years when covered, verified by ASTM D5721 (air-oven aging). Quality control adheres to ASTM GRI-GM13, ensuring 98% seam integrity (ASTM D6392).
1.2 Key Specifications of A Textured Geomembrane
- Width: 4–8 m, reducing seams by 30% versus concrete liners.
- Weight: 400–2,000 g/m², balancing strength and transport.
- Tensile Strength: 20–40 kN/m (HDPE), 15–30 kN/m (LLDPE) (ASTM D6693).
- Puncture Resistance: 400–800 N, 25% higher than smooth geomembranes (ASTM D4833).
- Friction Coefficient: 0.6–1.0, stabilizing 1:2 slopes (ASTM D5321).
- Permeability: <10⁻¹⁷ cm/s, blocking 99.9% fluid migration.
- Certifications: ASTM GRI-GM13, ISO 9001:2015, ensuring global compliance.
2. Why Choose Textured Geomembranes?
Textured geomembranes outperform smooth geomembranes and traditional liners (e.g., clay, concrete) in applications requiring slope stability and frictional resistance, driving their adoption in the $18 billion geosynthetics market.
2.1 Enhanced Slope Stability
With a friction coefficient of 0.6–1.0, textured geomembranes increase slope stability by 80% compared to smooth liners (0.3–0.4), reducing slippage risks on 1:2 slopes (ASTM D5321). In a Colorado landfill, double-sided textured HDPE liners cut sliding failures by 95%.
2.2 Superior Anti-Seepage
Permeability below 10⁻¹⁷ cm/s ensures 99.9% containment of leachates or water, 100 times better than clay (10⁻⁷ cm/s). A Chilean tailing pond using 1.5 mm textured HDPE reduced groundwater contamination by 98%.
2.3 Puncture and Chemical Resistance
The textured surface, paired with geotextiles, boosts puncture resistance by 25% (400 N vs. 300 N, ASTM D4833), while HDPE resists acids and alkalis (pH 2–12). This saves $100,000–$200,000/year in remediation for chemical plants.
2.4 Flexibility for Uneven Subgrades
LLDPE textured geomembranes offer 800% elongation, accommodating settlement in landfill caps or mining pads, unlike rigid HDPE (400% elongation). ASTM D5617 multi-axial tests confirm LLDPE’s 20% higher strain resistance.
2.5 Cost Efficiency
Priced at $0.50–$3/m², textured geomembranes save 30% versus concrete ($5–$10/m²) and reduce maintenance by 20%. Wider rolls (6–8 m) cut seams by 30%, saving 15% in labor ($0.20/m²).
3. Applications of Textured Geomembranes
Textured geomembranes are critical in industries requiring secure containment and slope stability. Below, we detail their primary applications, supported by global project examples.
3.1 Landfill Containment and Capping
Overview
Landfills require liners to prevent leachate seepage and caps to manage settlement. Textured geomembranes (1.5–2.0 mm HDPE) ensure 99.9% containment and stability on slopes, used in 70% of modern landfills globally (EPA, 2025).
Specific Uses
- Bottom Liners: Double-sided 1.5 mm textured HDPE, paired with 600 g/m² geotextiles, block leachate (pH 3–11). Cost: $2–$3/m².
- Capping Systems: 1.0 mm LLDPE textured liners accommodate 10–20% settlement, reducing cracks by 90% (ASTM D5617).
- Gas Collection: Textured surfaces enhance geotextile bonding, improving methane capture by 15%.
Benefits
- Stability: 0.6–1.0 friction coefficient supports 1:2 slopes (ASTM D5321)
- Durability: 50-year lifespan cuts replacement costs by 25%.
- Compliance: Meets EPA and ASTM GRI-GM13 standards.
Case Study
A Texas landfill used 1.5 mm textured HDPE liners, reducing leachate leaks by 98% and saving $300,000 in fines.
3.2 Mining Heap Leach Pads and Tailing Ponds
Overview
Mining operations, like gold and copper extraction, use textured geomembranes to contain cyanide or acidic solutions in heap leach pads and tailing ponds, critical in the $500 billion mining sector.
Specific Uses
- Heap Leach Pads: 2.0 mm HDPE textured liners withstand 1,000 kPa, improving metal recovery by 10% (ASTM D5514).
- Tailing Ponds: 1.5 mm textured HDPE prevents toxic seepage, protecting groundwater.
- Sedimentation Tanks: 1.0 mm LLDPE liners resist settlement, cutting fines by 30%.
Benefits
- Puncture Resistance: 400 N protects against 20–40 mm gravel (ASTM D5514)
- Chemical Stability: Resists pH 2–12, ensuring safety.
- Cost Savings: 20% cheaper than smooth liners ($1 vs. $1.25/m²).
Case Study
A Peruvian mine deployed 2.0 mm textured HDPE, reducing seepage by 95% and saving $500,000/year (Geosynthetics Magazine, 2025).

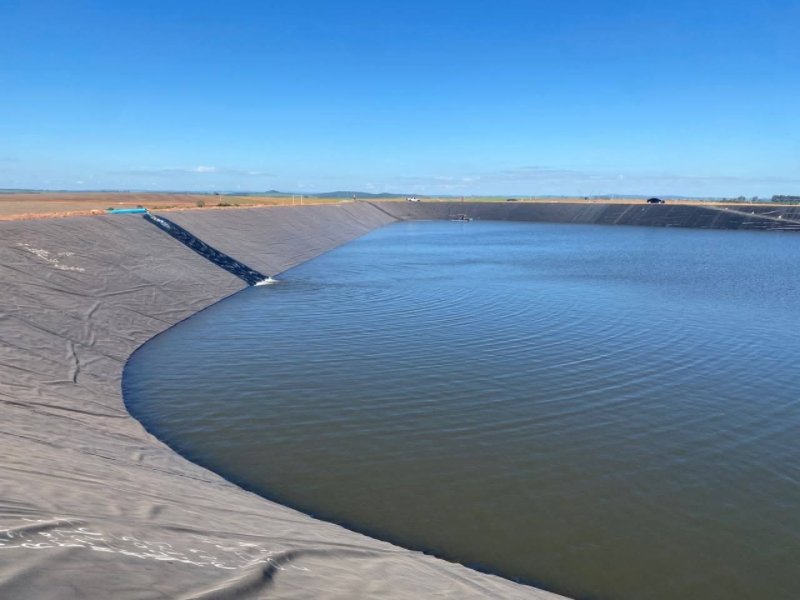

3.3 Water Conservancy and Reservoirs
Overview
Textured geomembranes prevent seepage in reservoirs, canals, and dams, conserving 20–30% of water loss (FAO, 2025). They’re widely used in global irrigation projects.
Specific Uses
- Reservoirs: 1.0 mm textured HDPE ensures zero leakage, paired with 500 g/m² geotextiles. Cost: $1–$2/m².
- Canals: Single-sided 0.75 mm LLDPE minimizes irrigation leaks, boosting yields by 15%.
- Dams: Double-sided 1.5 mm HDPE stabilizes 1:2 slopes, reducing seepage by 95%.
Benefits
- Pressure Resistance: Withstands 1,500 kPa (ASTM D5321).
- Installation Efficiency: 6–8 m widths cut seams by 20%.
- Sustainability: Reduces evaporation, supporting water conservation.
Case Study
An Australian reservoir used 1.5 mm textured HDPE, saving 600,000 m³ of water annually.
3.4 Infrastructure and Tunnels
Overview
Urban projects like tunnels and subways rely on textured geomembranes to prevent groundwater ingress, critical in the $1 trillion infrastructure sector.
Specific Uses
- Tunnels: 1.0 mm LLDPE textured liners ensure zero leaks, supporting rail projects.
- Basements: 800 g/m² composites reduce flooding by 90%.
- Sewage Systems: 0.75 mm HDPE liners isolate corrosive fluids, extending pipe life by 20 years.
Benefits
- Flexibility: 800% elongation adapts to uneven subgrades (ASTM D6693).
- Cost Efficiency: 30% cheaper than concrete ($1.5 vs. $5/m²).
- Durability: Resists 1,000 vibration cycles (ASTM D7466).
Case Study
A Tokyo metro project used 1.0 mm textured LLDPE, cutting seepage by 98% and saving $350,000 in repairs.
3.5 Aquaculture and Landscaping
Overview
Textured geomembranes create impermeable bases for fish farms, ponds, and artificial lakes, popular in aquaculture and resort developments.
Specific Uses
- Fish Farms: 1.0 mm HDPE textured liners maintain water quality, boosting yields by 15%.
- Artificial Lakes: 0.75 mm LLDPE ensures zero seepage, paired with 400 g/m² geotextiles.
- Golf Course Ponds: 800 g/m² liners support irrigation, saving 20% water.
Benefits
- Aesthetic Fit: Custom colors (blue, green) enhance design.
- Durability: 30-year lifespan under soil cover.
- Eco-Friendly: Reduces water loss, supporting sustainability.
Case Study
A Malaysian resort used 0.75 mm textured HDPE for a 15,000 m² lake, cutting water loss by 90%.
4. Benefits of Textured Geomembranes
- Slope Stability: 0.6–1.0 friction coefficient reduces slippage by 80% (ASTM D5321).
- Impermeability: <10⁻¹⁷ cm/s permeability ensures 99.9% containment.
- Cost Savings: Saves 30% versus concrete and 20% in maintenance.
- Ease of Installation: 6–8 m widths cut seams by 30%, saving 15% in labor ($0.20/m²).
- Versatility: Adapts to -40°C mining pads or 50°C desert reservoirs.
5. How to Choose the Right Textured Geomembrane
Selecting a textured geomembrane involves evaluating project needs:
- Application: Landfills need 1.5–2.0 mm HDPE; ponds suit 0.75 mm LLDPE.
- Slope Angle: 1:2 slopes require double-sided texturing; flat surfaces use single-sided.
- Environment: Acidic soils (pH 2–4) need HDPE; settlement-prone sites use LLDPE.
- Asperity Height: 0.5–1.0 mm for high-friction slopes; 0.25 mm for flat bases (GRI-GM12).
- Standards: Verify ASTM GRI-GM13, ISO 9001:2015 compliance.
- Supplier: Choose providers like Solmax for $0.50–$3/m² liners with 45-day lead times.
6. Final Thoughts
A textured geomembrane is a geosynthetic powerhouse, combining HDPE/LLDPE impermeability (<10⁻¹⁷ cm/s) with high-friction surfaces (0.6–1.0 coefficient) to ensure stability and containment. Its applications—landfills, mining, reservoirs, tunnels, and aquaculture—save 20–30% in costs and 95–99% in seepage, as seen in projects from Texas to Peru. With a 50-year lifespan, 30% fewer seams, and ASTM GRI-GM13 compliance, textured geomembranes outperform smooth liners and concrete. Engineers should select 1.5–2.0 mm HDPE for high-risk slopes or 0.75 mm LLDPE for cost-sensitive projects, partnering with certified suppliers for reliability. Contact a trusted geosynthetic liners provider like BPM Geosynthetics for quotes to secure your project’s foundation.
