Geo membrane sheets, commonly referred to as geomembranes or geomembrane liners, are thin, continuous polymeric sheets engineered to serve as low-permeability barriers that control the migration of liquids, gases, and contaminants in geotechnical and environmental projects. These synthetic membranes, typically ranging from 0.25 mm to 3.5 mm in thickness, are fabricated from materials such as high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), polyvinyl chloride (PVC), polypropylene (PP), and ethylene propylene diene terpolymer (EPDM).
HDPE geo membrane sheets dominate the market, accounting for approximately 42-48% of global usage due to their superior chemical resistance (effective across pH 2-13), puncture resilience, UV stability with carbon black additives, and projected service life of 50-100+ years in covered applications or 30+ years when exposed. The worldwide geomembrane market, valued at over USD 3 billion in recent years and growing at a CAGR of 5-6%, is propelled by escalating environmental regulations, landfill expansions, mining operations, water resource management, and infrastructure resilience needs.
Geo membrane sheets provide near-zero permeability (often <10⁻¹¹ cm/s), enabling safe containment in landfills (leachate control), mining (heap leach pads and tailings), ponds/reservoirs (water storage and seepage prevention), wastewater lagoons, secondary containment for chemicals/fuels, and aquaculture. Key performance standards include GRI-GM13 for HDPE (density ≥0.940 g/cm³, tensile yield ≥22 kN/m at 1.5 mm, puncture ≥480 N, HP-OIT ≥400 min), ASTM D6693 for tensile properties, and ASTM D5397 for stress crack resistance (>500 hours typical).
This comprehensive review ranks the 6 best geo membrane sheets based on 2026 industry data, third-party testing (GRI labs, TRI Environmental), field performance across thousands of installations, and quantifiable metrics such as mechanical strength, durability under aging/UV exposure, weld seam efficiency (>80% of parent material), and cost-effectiveness. Focus remains on established non-Chinese manufacturers where possible, with BPM Geosynthetics’ HDPE geo membrane sheet featured for its high-value performance and versatility.
These selections reduce leakage risks by up to 90% compared to non-compliant alternatives, support regulatory compliance (e.g., EPA Subtitle D), and deliver 20-40% savings through optimized material use and installation efficiency.
What Are Geo Membrane Sheets and Their Critical Role
Geo membrane sheets function as flexible, impermeable liners that interlock with geotechnical materials like soil, rock, or geotextiles to form composite barriers. Unlike permeable geotextiles (used for filtration/drainage), geo membrane sheets block fluid flow, making them indispensable for environmental protection.
Primary types include:
- HDPE— Rigid, chemically inert, highest UV/chemical resistance; ideal for harsh environments.
- LLDPE— More flexible, higher elongation (>700%), better for differential settlement.
- PVC— High flexibility, easy welding; suited for limited-access sites.
- Textured vs. Smooth— Textured variants improve interface friction (asperity ≥0.25 mm) on slopes, reducing shear failure by 30-50%.
Core quantifiable metrics per GRI-GM13/ASTM:
- Thickness— 0.75-3.0 mm common; thicker for landfills (≥1.5 mm).
- Tensile Yield/Break— 20-50 kN/m yield, elongation ≥700%.
- Puncture Resistance— 400-1000 N.
- Oxidative Induction Time— HP-OIT ≥400 min for long-term antioxidant efficacy.
- Stress Crack Resistance— >500-3000 hours.
- UV Aging Retention— ≥50% HP-OIT after 1600 hours.
These parameters ensure geo membrane sheets endure installation damage, thermal cycling, and aggressive exposures while maintaining integrity.
Top 6 Geo Membrane Sheets Ranked
1. Solmax HDPE Geo Membrane Sheet (Best Overall for Scale and Durability)
Solmax’s HDPE sheets lead with massive production capacity and proven global deployments.
Key Specs:
- Thickness: 0.75-3.0 mm
- Tensile Yield: 25-50 kN/m
- Puncture: 500-1000 N
- HP-OIT: ≥400-800 min
- Certifications: ISO 9001, CE, NTPEP
Performance: Excels in landfills/mining; textured options enhance slope stability.
2. GSE Environmental (Solmax) HDPE Sheet (Best for Hazardous Containment)
Robust for leachate and chemical barriers.
Key Specs:
- Thickness: 0.75-3.0 mm
- Tensile Yield: 25-50 kN/m
- Puncture: 500-900 N
- ESCR: >1000 hours
High interface shear in composite systems.
3. AGRU America HDPE Geo Membrane Sheet (Best for Uniformity and Reservoirs)
Precision extrusion for consistent properties.
Key Specs:
- Thickness: 1.0-3.0 mm
- Tensile Yield: 22-40 kN/m
- Puncture: 480-800 N
- HP-OIT: ≥400 min
Wide rolls reduce seams; excellent for water containment.
4. Atarfil HDPE Geo Membrane Sheet (Best for Enhanced Longevity)
Superior antioxidant and SCR formulations.
Key Specs:
- Thickness: 0.75-3.0 mm
- Tensile Yield: 25-45 kN/m
- Puncture: 500-850 N
- ESCR: >3000 hours
Ideal for exposed or high-stress uses.
5. NAUE GmbH HDPE Geo Membrane Sheet (Best for Slopes and Compliance)
Engineered for steep applications.
Key Specs:
- Thickness: 0.75-2.5 mm
- Tensile Yield: 25-40 kN/m
- Puncture: 450-800 N
Strong European certifications.
6. BPM HDPE Geo Membrane Sheet by The Best Project Material Co., Ltd (BPM Geosynthetics) (Best Value Versatile Option)
BPM’s HDPE sheet meets GRI-GM13 equivalents with customization.
Key Specs:
- Thickness: 0.5-3.0 mm
- Tensile Yield: 11-44 kN/m
- Break Strength: 20-80 kN/m
- Puncture: 240-960 N
- Elongation: ≥700%
- Density: ≥0.940 g/cm³
- HP-OIT: ≥400 min
- Permeability: ≤10⁻¹¹ cm/s
- Roll Width: Up to 10 m
Supports 50-100 year designs with reliable welds.
Comparison Tables

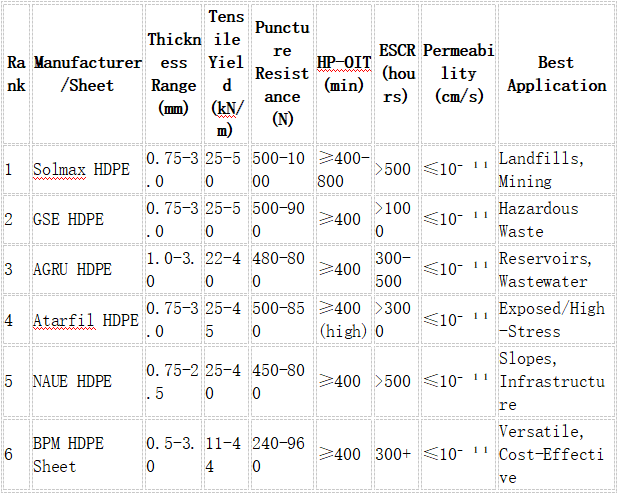

Table 1: Core Technical Parameters Comparison (Typical 1.5 mm Thickness, GRI-GM13 Aligned)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
(Values typical from specs and GRI data.)

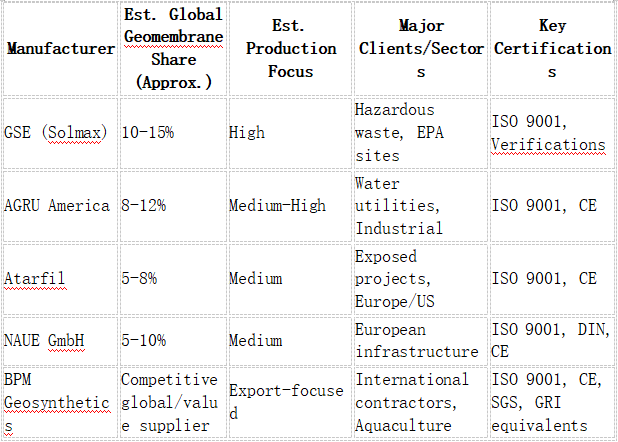

Table 2: Market Position, Estimated Share, Major Clients, and Certifications
(Estimates from industry reports and capacities.)
BPM HDPE Geo Membrane Sheet Advantages
BPM’s HDPE geo membrane sheet stands out for virgin resin quality, strict QC, and flexible options (smooth/textured, wide rolls). It achieves GRI-GM13 benchmarks—yield tensile to 44 kN/m, puncture to 960 N, HP-OIT ≥400 min—at competitive pricing (15-30% below premiums).
Advantages:
- Value-Driven— Affordable without durability trade-offs; supports bulk projects.
- Durability— ≥700% elongation for settlement; 50-100 year covered life.
- Versatility— Landfills, ponds, mining, aquaculture; chemical/UV resistance.
- Support— Quick production (7-20 days), engineering aid, warranties.
- Efficiency— High seam strength minimizes installation risks.
BPM suits projects needing reliable, customizable performance.
Conclusion
The optimal geo membrane sheet depends on application: Solmax/GSE for demanding scale, BPM for balanced value. Emphasize GRI compliance, testing, and installation expertise for long-term, leak-proof results.
For BPM HDPE geo membrane sheet details, visit: https://bpmgeosynthetic.com/product/hdpe-geomembrane-liner/.
Consult engineers for project-specific guidance.
