High-Density Polyethylene (HDPE) geomembrane sheets are widely used in environmental, geotechnical, and hydraulic engineering projects due to their excellent durability, chemical resistance, and impermeability. However, the price of HDPE geomembrane sheets can vary significantly depending on multiple factors. This case study explores the key determinants of HDPE geomembrane price, analyzes market trends, and provides insights for buyers and project planners.
1. What is HDPE Geomembrane Sheet?
1.1 Definition
HDPE Liner, or High-Density Polyethylene Liner, is a type of geomembrane used in various industries for its excellent barrier properties against liquids and gases. It is commonly employed in environmental protection projects, such as landfill liners, pond liners, and secondary containment systems. HDPE Liners are known for their durability, flexibility, and resistance to chemicals, making them ideal for applications requiring long-term performance and minimal maintenance.
1.2 Specifications of Geomembrane Sheet
Width:1m-10m
Color:White,Black,Blue,Green
Material:HDPE LDPE LLDPE
1.3 Applications
High-Density Polyethylene (HDPE) liners are versatile materials widely used across various industries due to their excellent chemical resistance, flexibility, and durability. This article explores the myriad applications of HDPE liners, highlighting their benefits and specific use cases in different sectors.
A. Environmental Protection: Landfill Liners
One of the most prominent applications of HDPE liners is in landfill sites. HDPE provides an impermeable barrier that prevents leachate—toxic liquid waste produced by decomposing organic matter—from contaminating the soil and groundwater. Its high tensile strength ensures the liner can withstand heavy loads from waste materials, making it a reliable solution for environmental protection.

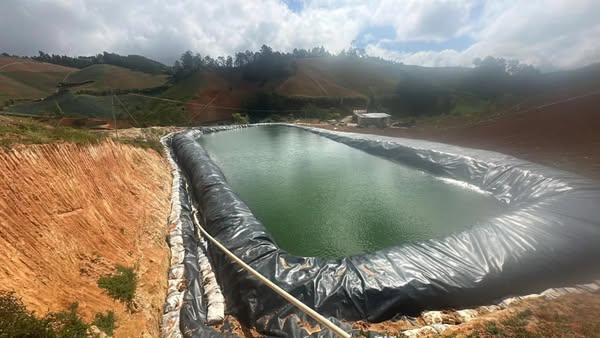

B. Water Containment: Pond and Reservoir Liners
In the agricultural and water management sectors, HDPE liners are essential for constructing ponds, reservoirs, and irrigation canals. These liners ensure minimal water loss through seepage, maintaining water levels and preventing contamination. The flexibility of HDPE allows it to conform to varying terrains, providing a seamless barrier against leakage.
C. Mining Industry: Tailings and Process Water Management
The mining industry utilizes HDPE liners for managing tailings—waste materials left after extracting valuable minerals from ore. By lining tailings storage facilities, HDPE prevents the leaching of harmful substances into the surrounding environment. Additionally, HDPE is used for process water containment, ensuring efficient recycling and reuse of water resources.
D. Construction: Foundation and Roofing Membranes
In construction, HDPE liners serve as foundation membranes beneath buildings and roads, preventing moisture ingress and protecting structures from rising damp. As roofing membranes, they offer superior waterproofing qualities, extending the lifespan of roofs and reducing maintenance costs. Their resistance to UV radiation and extreme temperatures makes them ideal for both residential and commercial projects.
E. Aquaculture: Fish Farm Liners
HDPE liners play a crucial role in aquaculture by creating controlled environments for fish farming. These liners line the bottom and sides of fish ponds and tanks, preventing water loss and containing nutrients essential for aquatic life. The non-toxic nature of HDPE ensures it does not harm fish or alter water quality, promoting healthy fish growth.
2. Factors Influencing HDPE Geomembrane Sheet Price
2.1 Raw Material Costs
The primary component of HDPE geomembranes is polyethylene resin, derived from petroleum. Fluctuations in crude oil prices directly impact manufacturing costs. For instance: Oil Price Surge (2021-2022): Due to geopolitical tensions and supply chain disruptions, crude oil prices increased by over 40%, leading to a 25-30% rise in HDPE geomembrane prices.
Stabilization (2023-2024):As oil prices stabilized, geomembrane costs saw a marginal decline.
2.2 Thickness and Density
HDPE geomembranes are available in thicknesses ranging from **0.5 mm to 3.0 mm, with standard densities between 940 kg/m³ and 960 kg/m³.
Thicker Sheets (2.0 mm – 3.0 mm):Used in landfills and mining, costing $0.80 – $1.50 per square meter.
Thinner Sheets (0.5 mm – 1.5 mm): Used in ponds and canals, priced at $0.30 – $0.70 per square meter.
2.3 Manufacturing Technology
Smooth vs. Textured Surface:Textured geomembranes (for slope stability) cost 10-20% more than smooth ones.
Multi-layer vs. Single-layer: Reinforced geomembranes with additives (UV stabilizers, antioxidants) are 15-25% more expensive.
2.4 Supplier and Brand Reputation
Global Brands (GSE, BPM, Solmax):Premium pricing due to quality assurance and certifications.
Local Manufacturers:Often 10-30% cheaper but may vary in quality.
2.5 Transportation and Logistics
Domestic vs. Imported Geomembranes:Shipping costs can add $0.05 – $0.20 per square meter.
Bulk Orders: Discounts apply for large-scale purchases (e.g., 5-15% off for orders >50,000 sqm).
2.6 Market Demand and Regional Factors
High Demand in Mining (Chile, Australia): Prices increase due to industrial needs.
Government Infrastructure Projects (USA, China): Bulk procurement reduces per-unit costs
3. Strategies to Optimize HDPE Geomembrane Costs
3.1 Bulk Purchasing and Long-Term Contracts
Example: A US-based landfill project saved 12% by ordering 100,000 sqm in advance.
3.2 Choosing the Right Thickness
Over-engineering vs. Cost-Effectiveness: A canal project in India reduced costs by 18% by selecting 1.0 mm instead of 1.5 mm (after engineering validation).
3.3 Local Sourcing vs. Imported Products
A South African mining company cut costs by 22% by switching from European to locally manufactured geomembranes.
3.4 Negotiating with Suppliers
Volume Discounts: Contractors in the Middle East secured 8-10% discounts by committing to multi-project supply agreements.
4. Future Trends in HDPE Geomembrane Pricing
A.Recycled HDPE Geomembranes:Emerging as a low-cost alternative (10-15% cheaper).
B. Automated Manufacturing:Reduced labor costs may lead to 5-10% price drops by 2026.
C. Trade Policies: Tariffs on Chinese geomembranes could increase prices in the US and Europe.
5. Conclusion
The price of HDPE geomembrane sheets is influenced by raw material costs, thickness, manufacturing techniques, supplier reputation, and market dynamics. Buyers must assess project-specific requirements and explore bulk purchasing, local sourcing, and supplier negotiations to optimize costs. As sustainability and automation trends evolve, future pricing structures may shift, offering both challenges and opportunities for the industry.
By understanding these factors, engineers, contractors, and project managers can make informed decisions, ensuring cost-effective yet high-quality geomembrane solutions for their projects.
