The 500 micron plastic sheet — commonly known as 0.5 mm geomembrane liner — is one of the most widely specified thicknesses in the geosynthetics industry. With a nominal thickness of 0.5 mm (20 mil), this durable, impermeable sheet is manufactured primarily from High-Density Polyethylene (HDPE), Linear Low-Density Polyethylene (LLDPE), Polyvinyl Chloride (PVC), or Reinforced Polyethylene (RPE). It serves as a reliable barrier for containment, lining, and waterproofing in applications ranging from small backyard fish ponds and agricultural reservoirs to large-scale landfills, mining heap leach pads, wastewater lagoons, secondary containment for fuel/chemical tanks, canal liners, and stormwater detention basins.
In 2025–2026, the global geomembrane market (of which 500 micron / 0.5 mm liners represent a substantial volume) is valued at approximately USD 2.1–2.6 billion, growing at 5.8–7.1% CAGR through 2030–2032 (MarketsandMarkets, Grand View Research, Geosynthetics Magazine 2025–2026 aggregates). HDPE continues to dominate with 45–55% share due to its superior chemical resistance, long design life (50–100+ years in buried applications), and compliance with stringent standards such as GRI-GM13, ASTM D7465, and IS 15351:2015.
But the most frequent question from contractors, engineers, farmers, pond builders and procurement teams remains: how much does a 500 micron plastic sheet cost per square meter (or per square foot)?
Short answer (2025–2026 market data):
- HDPE smooth geomembrane (0.5 mm): $0.50 – $1.80 per m² ($0.05 – $0.17 per sq ft) in bulk
- HDPE textured geomembrane (0.5 mm): $0.75 – $2.50 per m² ($0.07 – $0.23 per sq ft)
- LLDPE geomembrane (0.5 mm): $0.60 – $2.20 per m² ($0.06 – $0.20 per sq ft)
- PVC geomembrane (0.5 mm): $0.45 – $1.60 per m² ($0.04 – $0.15 per sq ft)
- RPE / reinforced variants: $0.80 – $3.00 per m² ($0.07 – $0.28 per sq ft)
These are typical bulk ex-works or delivered prices (FOB factory or freight-included to most continental US/EU locations) for standard roll widths (4–8 m) and quantities >10,000 m². Retail/small-roll prices through online marketplaces or local distributors are often 40–120% higher.
This ultimate guide provides a comprehensive, data-driven breakdown of 500 micron plastic sheet price in 2025–2026, including:
- Current global and regional price ranges by material type
- Key cost drivers (thickness tolerance, resin grade, additives, texture, certifications)
- Real-world pricing examples from major projects and suppliers
- Cost comparison: HDPE vs LLDPE vs PVC vs RPE at 500 micron
- How to calculate total installed cost (material + freight + labor + accessories)
- Case studies (pond liner, landfill, secondary containment, aquaculture)
- Strategies to reduce 500 micron plastic sheet price without compromising quality
- When investing in premium liners saves money long-term
All figures are based on mid-2025 to early-2026 market intelligence from manufacturer quotations, distributor price lists, industry reports, and active tenders.

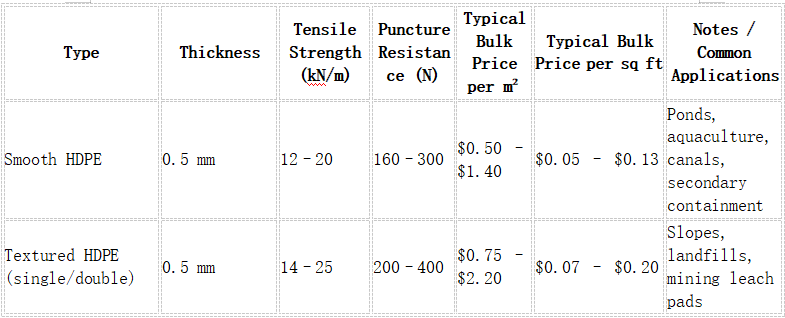

1. Current 500 Micron Plastic Sheet Price Ranges (2025–2026)
Prices fluctuate based on resin costs (polyethylene feedstock), energy prices, freight rates, currency exchange, and regional supply-demand balance.
1.1 HDPE Geomembrane (Smooth & Textured) – Most Common 500 Micron Sheet
HDPE remains the benchmark material for 500 micron liners due to its excellent chemical resistance, UV stability (with carbon black), and long service life.
Average delivered price (US/EU mid-2026): $0.80–$1.80/m² smooth, $1.10–$2.50/m² textured (freight included to most locations).
1.2 LLDPE Geomembrane (0.5 mm)
LLDPE offers higher flexibility and elongation than HDPE, making it suitable for irregular subgrades and exposed applications.
- Bulk price range: $0.60 – $2.20/m²($0.06 – $0.20/sq ft)
- Advantages: Better low-temperature performance, easier installation on uneven surfaces
- Common uses: Decorative ponds, wastewater lagoons, temporary containment
1.3 PVC Geomembrane (0.5 mm)
PVC is flexible, easy to weld, and cost-competitive for short- to medium-term projects.
- Bulk price range: $0.45 – $1.60/m²($0.04 – $0.15/sq ft)
- Drawbacks: Plasticizer migration over time (reduced lifespan 10–25 years)
- Common uses: Small decorative ponds, canal liners, secondary containment
1.4 Reinforced Polyethylene (RPE) & Specialty Variants (0.5 mm)
RPE combines scrim reinforcement with polyethylene for high tear strength.
- Bulk price range: $0.80 – $3.00/m²($0.07 – $0.28/sq ft)
- Common uses: Floating baffles, large exposed liners, aquaculture raceways
2. Key Factors That Drive 500 Micron Plastic Sheet Price
2.1 Material & Resin Grade
- Virgin HDPE resin (density 0.94–0.96 g/cm³) → baseline cost
- Recycled content blends → 10–25% lower (but reduced performance)
- Premium resins with antioxidants/carbon black → 15–30% higher
2.2 Surface Texture
- Smooth → lowest cost
- Single-textured → +20–40%
- Double-textured → +40–80% (higher friction for slopes)
2.3 Thickness Tolerance & Standards Compliance
- Strict tolerance (±5–10%) per GRI-GM13/GM17→ 15–35% premium
- Non-certified or local grades → 20–40% cheaper (higher risk)
2.4 Roll Dimensions & Volume
- Standard rolls (4–8 m width × 50–200 m length) → base price
- Custom widths/lengths → +5–15%
- Bulk orders (>20,000 m²) → 15–30% discount
2.5 Freight & Logistics
Freight adds $0.05–$0.25/m² depending on distance and volume.
- US West Coast vs Midwest → +10–30%
- International container to Africa/Asia → $0.15–$0.50/m² extra
2.6 Additives & Color
- Standard black (carbon black) → baseline
- White/conductive/colored → +15–50%
3. Real-World 500 Micron Plastic Sheet Price Examples (2025–2026)
3.1 Small Backyard Fish Pond (200–500 m²)
- Material: Smooth HDPE 0.5 mm
- Quantity: 400 m² (with overlap)
- Delivered price: $0.75–$1.40/m²
- Total material cost: $300–$560
- Installation (welding + labor): $200–$600
- Savings vs concrete: $2,000–$5,000
3.2 Commercial Aquaculture Pond (5,000 m²)
- Material: Smooth HDPE 0.5 mm
- Delivered price: $0.55–$1.10/m²(bulk)
- Total material cost: $2,750–$5,500
- Savings vs clay lining: $15,000–$40,000
3.3 Landfill Cell Liner (50,000 m²)
- Material: Textured HDPE 0.5 mm + geotextile cushion
- Delivered price: $1.40–$2.40/m²
- Total material cost: $70,000–$120,000
- Compliance premium: +15–25%for GRI-GM13 certified
4. How to Calculate Total Installed Cost of 500 Micron Plastic Sheet
Step-by-step:
- Measure area— Add 10–15% for overlap, anchoring & waste
- Select material— Smooth HDPE for flat, textured for slopes
- Obtain bulk quote— Request from BPM Geosynthetics or distributors
- Add freight— $0.05–$0.25/m²
- Include installation— Welding $0.20–$0.80/m², labor $0.30–$1.50/m²
- Add accessories— Seam tape, batten bars, sandbags (~5–10%)
Example: 1,000 m² pond liner
- Area with overlap: 1,150 m²
- Smooth HDPE 0.5 mm @ $0.90/m² delivered
- Material cost: $1,035
- Welding + labor: $500–$1,200
- Total installed: $1,535–$2,235($1.33–$1.94/m²)

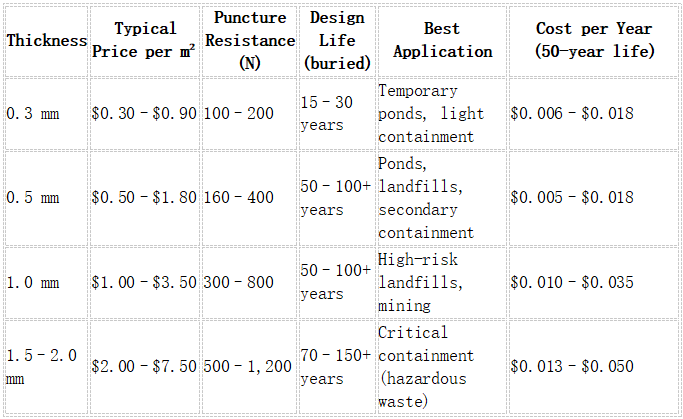

5. Cost Comparison: 500 Micron vs Other Thicknesses
Takeaway: 500 micron often provides the best cost-to-performance ratio for most pond, lagoon and containment projects.
6. Strategies to Reduce 500 Micron Plastic Sheet Price
- Order in bulk— >10,000 m² orders save 15–30%.
- Choose smooth over textured— Save 20–40% when slopes are minimal.
- Use local/regional suppliers— Reduce freight 10–25%.
- Request project-specific quotes— BPM Geosynthetics offers competitive pricing for named projects.
- Avoid retail/small rolls— Online markups are 50–150%.
- Consider polyester only when necessary— PP is 15–30% cheaper for buried use.
7. When Paying More for 500 Micron Plastic Sheet Saves Money
- High chemical exposure— Premium virgin HDPE → avoids replacement costs.
- Sloped installations— Textured surface → reduces sliding risk and installation labor.
- Long design life→ 0.5 mm certified liner → lower lifecycle cost vs 0.3 mm cheap alternatives.
