More and more China Needle Punched Geotextile Fabric are very popular in recent years, they can be used to increase ground support and soil stabilization in a given location, it has the characteristics of high tensile strength, high elongation rate, excellent UV stabilization, excellent filtration and good abrasion resistance, etc. It is widely used for filtration, separation, protection, drainage applications in civil environmental engineering and construction projects.Nowadays, many clients do not know how to choose Right Needle Punched Geotextile Fabric.This article will briefly discuss how to choose Right Needle Punched Geotextile Fabric.
1.Brief Introduction to Needle Punched Geotextile Fabric
1.1 Definition of Needle Punched Geotextile Fabric
Needle Punched Geotextile Fabric is often made from polypropylene or polyester fibers processed by woven, needle-punched or heat-bonded methods. Short fiber needle punched geotextile fabric is made from 100% virgin staple polypropylene fibers that are tangled and interlocked with each other by needle-punching process. It is the kind of non woven geotextile fabric which is robust, durable, permeable and resist to deformation.
1.2 China Needle Punched Geotextile Fabric types and its brief applications
There are different types of Needle Punched Geotextile Fabric available in China, each designed for specific applications. Here are some common types and their brief applications.
1.2.1 Staple Fiber Needle Punched Geotextile Fabric
BPM Staple Fiber Needle Punched Geotextile is produced from polyester or polypropylene Fiber by different equipment and technology to get different thickness.The main function is filtration, drainage, reinforcement. lt has good impermeability and resistance to deformation.
BPM Staple Fiber Needle Punched Geotextile are widely used in various applications, including:
- Reinforcement in retaining wall backfill.
- Strengthen the wek road and fix the cracks on the road.
- Improve the stability of slope and reinforcement soil, avoid water and soil loss and soil frozen injure.
- Isolation layer of artificial backfill soil stone with foundation and different tundra.
- Filtration layer of drainage pipe or gravel sub-drain. F. Vertical or horizontal drainage; Bury in soil to release air pressure.
- Reinforce the weak foundation of engineering of road, railway, embankment, airport.
Specifications of Staple Fiber Needled Punched Geotextile Fabric
|
Test |
Units |
BTS10 |
BTS15 |
BTS20 |
BTS25 |
BTS30 |
BTS35 |
BTS40 |
BTS45 |
BTS50 |
BTS60 |
BTS80 |
BTS90 |
BTS120 |
|
|
Mechanical Properties |
Weight |
g/m2 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
800 |
900 |
1200 |
|
|
Weight Variation |
% |
-8 |
-8 |
-8 |
-8 |
-7 |
-7 |
-7 |
-7 |
-6 |
-6 |
-6 |
-6 |
-6 |
|
|
Thickness |
mm |
0.9 |
1.3 |
1.7 |
2.1 |
2.4 |
2.7 |
3 |
3.3 |
3.6 |
4.1 |
5 |
5.5 |
6.9 |
|
|
Width Variation |
% |
-0.5 |
||||||||||||
|
|
Break Strength |
kN/m |
2.5 |
4.5 |
6.5 |
8 |
9.5 |
11 |
12.5 |
14 |
16 |
19 |
25 |
29 |
38 |
|
|
Break Elongation |
% |
25 ~ 100 |
||||||||||||
|
|
CBR Burst Strength ≥ |
kN |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.2 |
4 |
4.5 |
6.2 |
|
|
Tear Strength ≥ |
kN |
0.08 |
0.12 |
0.16 |
0.2 |
0.24 |
0.28 |
0.33 |
0.38 |
0.42 |
0.46 |
0.6 |
0.64 |
0.82 |
|
MD=Machine Direction Strength CD=Cross Machine Direction Strength |
|||||||||||||||
|
Hydraulic |
Sieve Size O90 |
mm |
0.07 ~ 0.20 |
||||||||||||
|
|
Coefficient of |
cm/s |
(1.0-9.9)× (10-1 ~ 10-3) |
||||||||||||

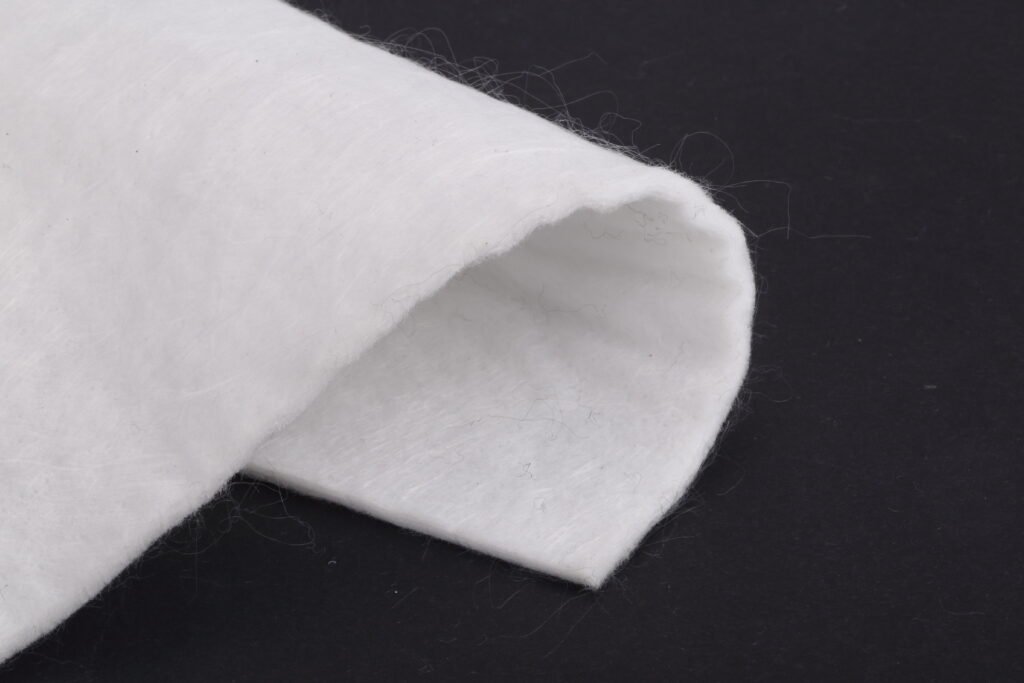

1.2.2 Filament Needled Punched Geotextile Fabric
Filament Needled Punched Geotextile Fabric is made from virgin continuous polyester filament by needle punching and thermally bonding process to form strong fabric that retains its dimensional stability and is resistant to damage from construction stresses.Polyester filament non woven geotextile is widely used for separation, filtration, drainage, protection and reinforcement functions in civil environmental engineering and construction projects.
Separation. To separate building materials with different physical properties such as soil and sand, sand and gravel, soil and concrete, etc. Keep the two or more materials from losing or mixing, and maintain the overall structure and function of the material, such as the effective isolation between the roadbed and the foundation, the foundation and the embankment, the geomembrane and the sand draining layer.
Soft foundation reinforcement. To enhance the tensile strength and anti deformation ability of soil can enhance the stability of building structures such as trash impurities, base soil or stone layer, airport railway, playground, runway, landfill and so on, so as to improve the quality of soil.
Filter. When the water flows into the coarse soil layer from the fine soil layer, the geotextile can make the water flow through the good permeability and permeability of geotextiles, and effectively interception the soil particles, fine sand and small stones, so as to keep the stability of the soil and water engineering.
Drainage. installed in the geomembrane, the playground or the railway track bed.
Protection. effectively diffuse, transfer or decompose the stress of civil engineering so as to prevent soil from being damaged by external force.
Specifications of Filament Needled Punched Geotextile Fabric
|
Specifications |
Test Method |
Unit |
BTF100 |
BTF150 |
BTF200 |
BTF250 |
BTF300 |
BTF350 |
BTF400 |
BTF450 |
BTF500 |
BTF60 |
|
Index Properties |
||||||||||||
|
Ultimate Tensile Strength, MD |
ASTM D4595 |
kN/m |
7 |
11 |
14 |
17 |
19 |
24 |
27 |
30 |
37 |
41 |
|
Ultimate Tensile Strength, TD |
ASTM D4595 |
kN/m |
6 |
10 |
12 |
15 |
17 |
21 |
25 |
28 |
34 |
38 |
|
Tensile Elongation |
ASTM D4595 |
% |
45 |
45 |
50 |
50 |
50 |
60 |
60 |
60 |
60 |
60 |
|
Grab Tensile Strength, MD |
ASTM D4632 |
N |
400 |
600 |
850 |
1000 |
1250 |
1450 |
1700 |
1900 |
2100 |
2500 |
|
Grab Tensile Strength, TD |
ASTM D4632 |
N |
350 |
550 |
700 |
900 |
1100 |
1250 |
1450 |
1600 |
1800 |
2150 |
|
Grab Elongation |
ASTM D4632 |
% |
45 |
45 |
50 |
50 |
50 |
60 |
60 |
60 |
60 |
60 |
|
Trapezoid Tear Strength, MD |
ASTM D4533 |
N |
160 |
300 |
350 |
430 |
490 |
540 |
630 |
710 |
770 |
920 |
|
Trapezoid Tear Strength, TD |
ASTM D4533 |
N |
140 |
270 |
330 |
400 |
450 |
510 |
610 |
690 |
750 |
900 |
|
CBR Puncture Strength |
ASTM D6241 |
N |
1000 |
1800 |
2300 |
2700 |
3200 |
3600 |
4400 |
4800 |
5800 |
6900 |
|
Apparent Opening Size O90 |
ASTM D4751 |
mm |
0.12 |
0.11 |
0.11 |
0.10 |
0.09 |
0.09 |
0.08 |
0.08 |
0.08 |
0.08 |
|
Water Flow Q100 |
ASTM D4491 |
L/m2/s |
250 |
235 |
220 |
200 |
185 |
165 |
125 |
110 |
90 |
80 |
|
Weight |
ASTM D5261 |
g/m2 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
Thickness |
ASTM D5199 |
mm |
1.2 |
1.8 |
2.3 |
2.9 |
3.2 |
3.6 |
3.9 |
4.2 |
4.4 |
4.8 |
|
Roll Width |
– |
m |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
Roll Length |
– |
m |
300 |
200 |
150 |
100 |
100 |
100 |
80 |
80 |
50 |
50 |
2.How to Choose Right Needle Punched Geotextile Fabric
2.1 Material Quality: Ensure that the Needle Punched Geotextile Fabricl is made from high-quality materials. The Needle Punched Geotextile Fabric should meet industry standards and specifications for Needle Punched Geotextile Fabric.
Look for manufacturers or suppliers with a good reputation for producing reliable and durable products.
2.2 Width and Length: Determine the required width and length of the liner roll based on the dimensions of your project site. Ensure that the supplier can provide the liner roll in the required dimensions to minimize waste and installation effort.
The BPM factory can produce the width are 1m, 2m, 4m, 6m.
2.3 Certification and Testing: Check if the Needle Punched Geotextile Fabric has undergone testing and certification by reputable organizations or laboratories. Look for certifications such as ISO 9001:2015, ISO 14001:2015, to ensure that the Needle Punched Geotextile Fabric meets quality and performance standards.
2.4 Chemical Resistance: Assess the chemical resistance properties of the Needle Punched Geotextile Fabric. It should be resistant to a wide range of chemicals typically found in the specific application environment. Request chemical compatibility data from the supplier and verify that it meets your project requirements.
BPM company has its own GAILAP laboratory and a complete laboratory testing system
2.5 Installation Support: Inquire about the supplier’s installation support services. Some suppliers may offer technical assistance, training, or installation guidelines to ensure proper installation of the Right Needle Punched Geotextile Fabric. This can be beneficial, especially if you are not familiar with the installation process.
2.6 Price and Delivery: Compare prices from different suppliers while considering the quality and specifications of the Right Needle Punched Geotextile Fabric. Additionally, ensure that the supplier can deliver the liner roll within the required timeframe, especially if you have project deadlines.
3.Summary
Based on this article’s words, you could know How to Right Needle Punched Geotextile Fabric: The quality is basic and the service is the safeguard.
So when buying the Right Needle Punched Geotextile Fabric, hope this article can help you well to do the Right Needle Punched Geotextile Fabric for sale. If you have any related projects or Right Needle Punched Geotextile Fabric, do not hesitate to ask a price here. Thanks for reading.
