Geomembrane waterproofing is a critical engineering solution used to prevent fluid leakage in construction, environmental protection, and industrial applications. These synthetic membranes act as impermeable barriers, ensuring long-term protection against water seepage, chemical corrosion, and contamination. This article explores geomembrane materials, applications, advantages, installation methods, and a real-world case study to demonstrate their effectiveness.
1. Geomembrane waterproofing Definition
A geomembrane is a flexible, waterproof sheet made from polymers such as:
- HDPE (High-Density Polyethylene) – Strong, chemical-resistant, used in landfills and ponds.
- LLDPE (Linear Low-Density Polyethylene) – More flexible than HDPE, ideal for irregular surfaces.
- PVC (Polyvinyl Chloride) – Easy to install, used in canals and tunnels.
- EPDM (Ethylene Propylene Diene Monomer) – Rubber-like flexibility, common in roofing.
Geomembranes are manufactured in thicknesses ranging from 0.5 mm to 3.0 mm, depending on the application.
2. Geomembrane waterproofing Properties
HDPE textured geomembrane is a commonly used geotechnical material, mainly made of high-density polyethylene (HDPE), with the following characteristics:
Anti seepage performance: Rough surface geomembrane can effectively prevent water leakage in the soil and protect the safety of groundwater resources.
Tensile strength and puncture resistance: Textured HDPE geomembrane has high tensile strength and puncture resistance,
HDPE geomembrana offers many advantages that make it a preferred choice for various applications:
2.1 Excellent Stress Cracking Resistance
HDPE geomembrana exhibits exceptional resistance to environmental stress cracking, ensuring its durability and integrity. It also demonstrates excellent resistance to chemical corrosion, making it suitable for environments with harsh chemical exposures.
2.2 Wide Temperature Range and Long Service Life
HDPE geomembrana can withstand a broad range of temperatures, making it suitable for both hot and cold climates. It has a long service life, providing reliable performance over extended periods of time.
2.3 Outstanding Chemical Resistance
HDPE geomembrana has excellent resistance to a wide range of chemicals, including acids, alkalis, and organic solvents. This chemical resistance ensures its suitability for applications where exposure to corrosive substances is expected.
2.4 UV Resistance
The geomembrana is formulated with UV stabilizers, providing excellent resistance to ultraviolet radiation. This feature enables it to withstand prolonged exposure to sunlight without degradation, making it ideal for outdoor applications.
2.5 Weldability
HDPE geomembrana can be easily welded using various techniques, such as hot wedge welding or extrusion welding. This allows for efficient installation and ensures the creation of reliable seams, providing a continuous impermeable barrier.
2.6 Cost-Effectiveness
HDPE geomembrana offers a cost-effective solution compared to alternative materials. Its long service life, low maintenance requirements, and ease of installation contribute to overall cost savings.
2.7 Durability
HDPE geomembrana is highly durable and resistant to punctures, tears, and abrasions. It can withstand mechanical stresses and deformations without compromising its performance, providing long-lasting protection.
2.8 Cold Temperature Performance
HDPE geomembrana maintains its flexibility and integrity even in cold temperatures, allowing for reliable performance in freezing conditions.
2.9 Complete Width and Thickness Specifications
HDPE geomembrana is available in a wide range of sizes, allowing for customization to meet project-specific requirements. This ensures that the geomembrana is precisely tailored to achieve the desired performance and efficiency.
HDPE geomembrana offers many advantages, including excellent environmental stress cracking and chemical corrosion resistance, wide temperature range suitability, long service life, UV resistance, weldability, cost-effectiveness, durability, cold temperature performance, and the availability of complete width and thickness specifications. These features make HDPE geomembrana a reliable and versatile solution for a variety of applications in civil engineering, environmental protection, and containment systems.
3. Geomembrane WaterproofingApplication
3.1 Water Management

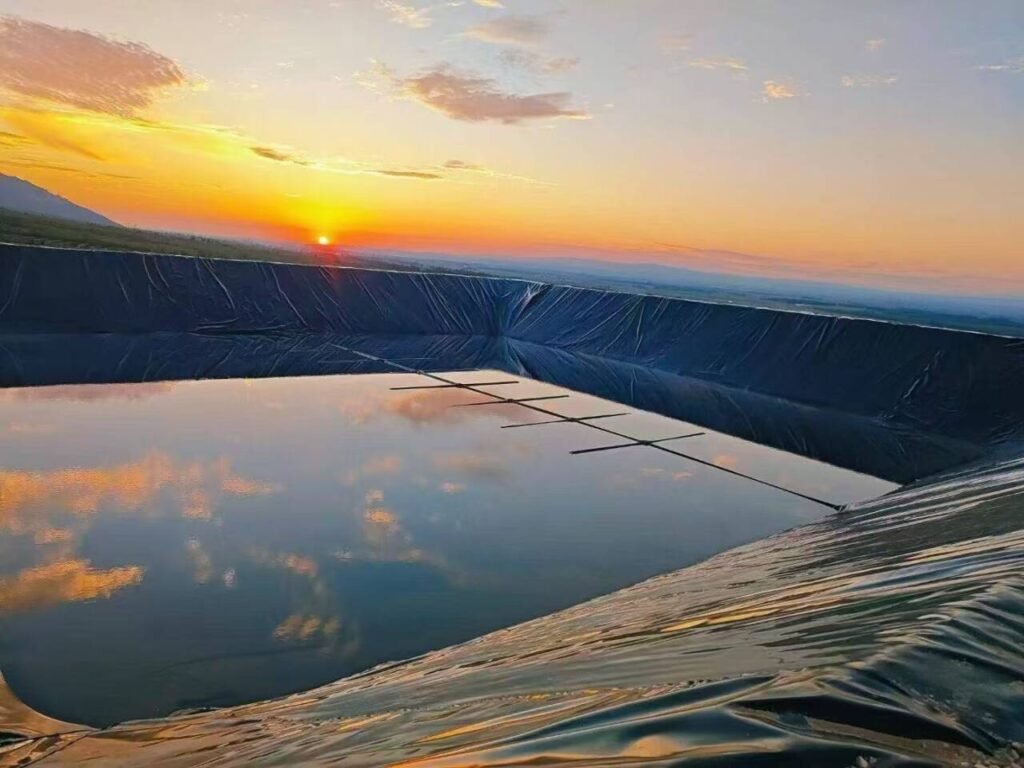

Reservoirs & Canals– Prevent water loss through seepage.
Fish Ponds & Aquaculture– Maintain water levels and prevent contamination.
3.2 Environmental Protection
Landfills– Block toxic leachate from polluting groundwater.
Wastewater Treatment – Line lagoons to prevent leaks.
3.3 Construction & Infrastructure
Tunnels & Basements– Stop water infiltration in underground structures.
Green Roofs & Terraces – Provide waterproofing beneath soil and vegetation.
3.4 Mining & Oil Industry
Tailings Ponds – Contain mining waste fluids.
Oil Storage Pits– Prevent hydrocarbon leaks.
4. Geomembrane WaterproofingConstruction
A. Welding (Heat Sealing)
– Used for HDPE, PVC, and LLDPE geomembranes.
– Hot wedge or extrusion welding fuses sheets together.
B. Adhesive Bonding
EPDM membranes are glued using specialized adhesives.
C. Mechanical Anchoring
Secured with concrete, gravel, or sandbags at edges.
D. Quality Control
Spark Testing – Detects leaks in welded seams.
Air Pressure Testing – Ensures seam integrity.
5. Case Study: Geomembrane Lining in a Landfill Project
Project Overview
Location: Northern California, USA
Purpose: Prevent landfill leachate from contaminating groundwater
Geomembrane Used: 1.5 mm HDPE Liner
Installation Process
- Site Preparation – Compacted soil and removed sharp objects.
- Liner Deployment– Unrolled and positioned using heavy machinery.
- Welding – Seams heat-welded and tested for leaks.
- Protection Layer – Covered with a geotextile to prevent punctures.
Results
Zero leakage: after 5 years of operation.
Cost Savings: Reduced environmental cleanup risks.
Compliance: Met EPA (Environmental Protection Agency) standards.
6. Conclusion
Geomembrane waterproofing is a highly effective, durable, and versatile solution for preventing fluid leakage in construction, environmental, and industrial projects. With materials like HDPE, PVC, and EPDM, geomembranes provide long-term protection against water, chemicals, and contamination.
The landfill case study demonstrates how geomembranes ensure environmental safety and regulatory compliance. As technology advances, geomembranes continue to be a preferred choice for large-scale waterproofing needs.
